"The Reduit" art project

Picture machine in the Sasso San Gottardo

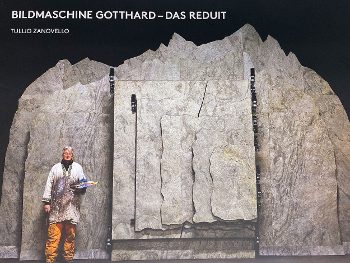

The Zurich artist Tullio Zanovello built an image machine for the Alpine fortress. The 1.5 tonne work of art consists of 11 panels, 30 lights and 12 motors which were developed and programmed with the drive experts from Antrimon.

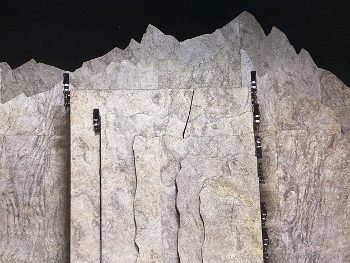

From a distance, the installation looks like sandstone slabs leaning against each other. Only on closer inspection do they turn out to be layers of wood connected with hinges, on the inside of which seven motifs are painted. Electric motors are supposed to open the slabs layer by layer according to a pre-programmed sequence and thus tell a story.

The twelve-minute performance entitled "Reduit" is accompanied by orchestral music composed by Tullio Zanovello himself and ends with a firework-like light show that illuminates the final image.

Zanovello art project
Projekt_Zanovello_Galerie
Projekt_Zanovello_Galerie
Projekt_Zanovello_Galerie
Projekt_Zanovello_Galerie
Projekt_Zanovello_Galerie
Keine Bilder vorhanden
Motion Control
Drive technology
Software

System characteristics

Objective

  • Drive design taking into account the difficult environment in the cave
  • Delivery of 12 drive units including motor controls
  • Complete programming of the synchronised motion sequences
  • Professional wiring of the multi-axis system

Features

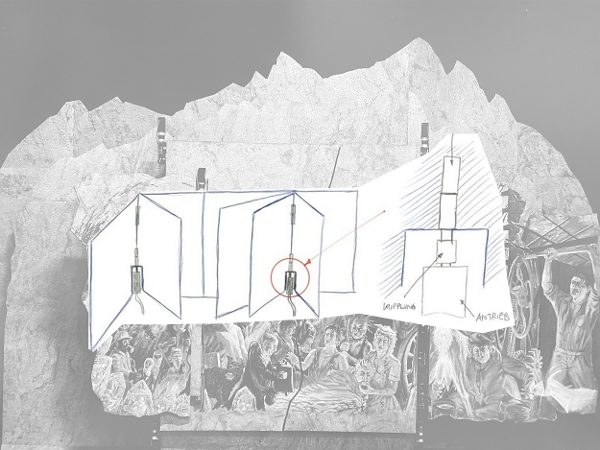

  • The drives are mounted in the respective recesses and attached to the hinges via couplings
  • In the case of the turntable, the drive is mounted underneath, in the case of the turntable, behind the plate
  • The safe door is opened and closed by a brushless geared motor with encoder

Key figures

  • Weight: 1.5 tons (300kg stone veneer)
  • Width: 7 metres | Height: 4.5 metres
  • Location: Sasso San Gottharo (300 metres in the tunnel)
  • 100m cable | 30 lights
  • 12 motors
  • 24 minutes per show
  • Construction time: 3 years
