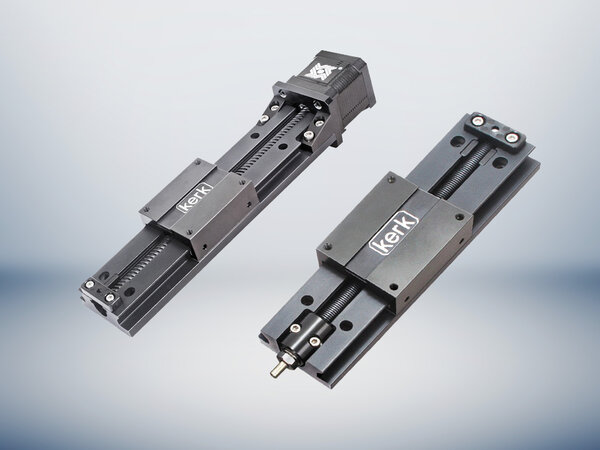

Linear Rail System WGS

The WGS linear guide system uses a spindle-driven carriage to provide smooth linear speed and precise positioning. A fixed mounting plate provides support along the entire length of up to 2.5 m.

Numerous optional pitches allow for high efficiency or self-locking design, eliminating the need for brakes in vertical applications. With the wide range of lead screws available, speeds of more than 1.5 metres per second are possible. This can replace belt drives to achieve higher positional accuracy, repeatability and axial rigidity.

Features

• Maximum length 2.5 m
• Pitch of standard threads 2.54 mm, 5.08 mm, 12.70 mm and 25.40 mm
• Speeds up to 1.5 m/s
• Guides with wear- and play-compensating slides
• Plain bearings on flat aluminium guide rail for smooth movement over the entire stroke
• Slide bearing and nut made of Kerkite® high-performance polymers
• Threaded spindle made of high-quality stainless steel with Kerkote TFE coating
• Optionally available with attached motor or with integrated electronics (IDEA)

Additional active or passive slides with application-specific dimensional adjustments available
The linear unit WGS can be freely configured for higher quantities (length, motorisation, control, encoder, etc.).
