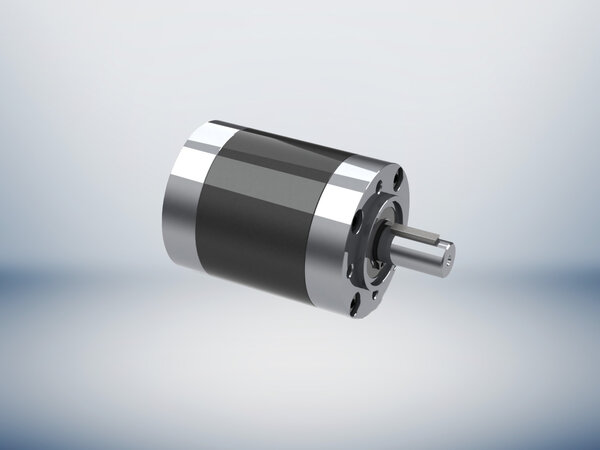

Planetary gears PI

Due to the modular design, the different stages can be combined with each other as desired. This results in a large number of different reduction ratios. For applications with particularly high requirements regarding running noise, it is possible to use planetary gears made of special plastic.

The standard planetary gears are manufactured from an outer diameter of 32 to 81mm as well as in 1- to 5-stage versions. These are particularly suitable in combination with DC motors of the M, EM, BL series and AC motors of the D and E series. In addition, different sizes of planetary gearheads can be combined with each other.

Please note: The gearheads are not offered as individual components. They are only available in combination with a motor.
