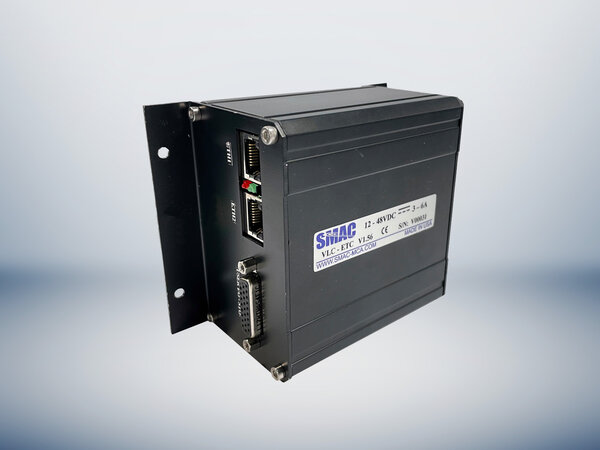

Moving Coil Controller VLC-ETC

1-axis EtherCAT servo drive with pre-programmed system macros.

Additional macros can be programmed in the VLC to execute subroutines/functions that can be called from the EtherCAT master. Background knowledge of the VLC is required to configure the servo parameters of the VLC-ETC. For more information on servo drive parameters and programming, refer to the current VLCI-R1 or VLCI-X1 manual.

Features

  • Position, speed, torque, current, homing, phasing
  • Filter algorithm
  • Servo position feedback
  • Incremental encoder with index
  • PWM (space vector modulated), 3.5 A DC and 6.5 A peak current (with suitable thermal protection) at 50 VDC max.
  • Motor type : 3-phase brushless, DC brushed, linear voice coil
  • Encoder and index input
  • Digital I/O

Communication interface

  • 1x serial/UART (micro USB connector): 9600 baud standard, selectable between 2400 - 460800
  • 2x EtherCAT RJ-45 connectors

VLC programme space

  • Macro memory: 53728 bytes
  • Maximum number of macros: 512
  • Maximum number of programme registers: 2048

Replaces the product CBC-ETC.
