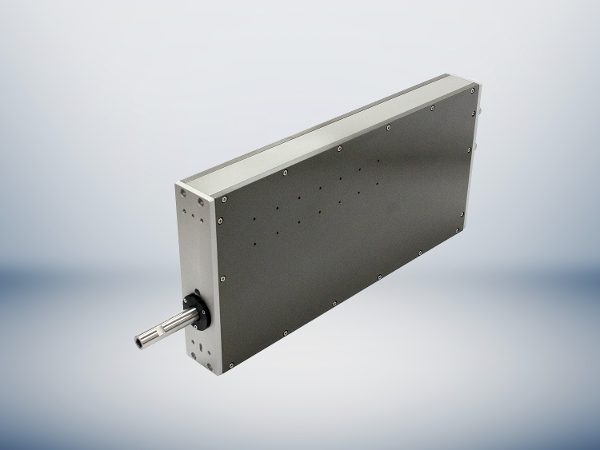

Linear/Rotary Actuators LBR

Moving Coil Actuator

Slim, stackable linear rotary actuator with a brushless direct drive motor

The linear/rotary actuators combine linear and rotary movement in a single unit. The precise Z-theta movement in one actuator makes it ideal for pick & place and alignment tasks. All models also feature a vacuum passage in the piston rod.

The LBR series offers long life, high linear force and torque and is specifically designed for capping, thread inspection and smart screw drive applications.

Features

  • Softland and precise force/torque control
  • Precise positioning
  • Encoder resolution linear: 5µm standard resolution, optional: 0.5 µm and 0.1µm
  • Encoder resolution rotary: 2000 to 20000 increments
  • Vacuum passage in the shaft
  • Return spring optionally available
  • Long life (>100 million cycles)
Linear/Rotary Actuators LBR

Add product to the list Remove product from the list.

Downloads

  1. Overview
  2. Datasheet
  3. 3D model
  4. Movie
