AC capacitor motors

Series E4240A to E9080

Optionally with gearboxes

These capacitor motors are particularly suitable for drives that are supplied directly from the 230 VAC mains. 2-, 4- and 8-pole motors are available, which can be optionally supplemented with gearboxes. The use of specially manufactured squirrel cage motors ensures that the motors start up safely.

Features

  • ø 45 mm to 95 mm
  • Rated power 5 W to 75 W
  • Long service life
  • Direction of rotation can be changed by interchanging two leads
  • For FI operation or directly from 230 VAC mains (operating capacitor required)

Options

  • Design for 110 VAC/60 Hz or other voltages/frequencies
  • Winding design for short-time operation with higher power and torque values
  • Protection class up to IP65 (terminal box and glands) and higher
  • Adaptations such as shaft outlet, flange, connector assembly, terminal box

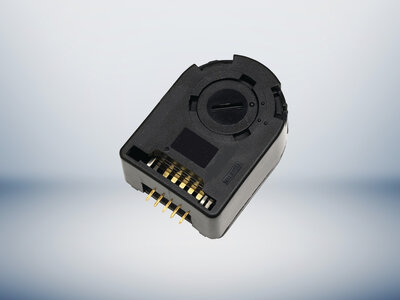

  • Mounting of tachometer, resolver, absolute or incremental encoder, brake

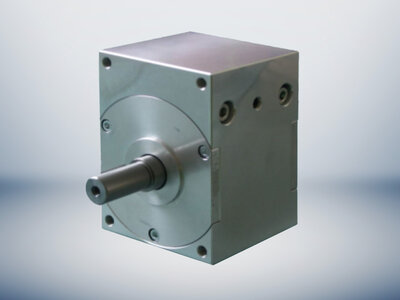

  • Combinations with planetary and worm gears
