Optical Encoders | E5 Series

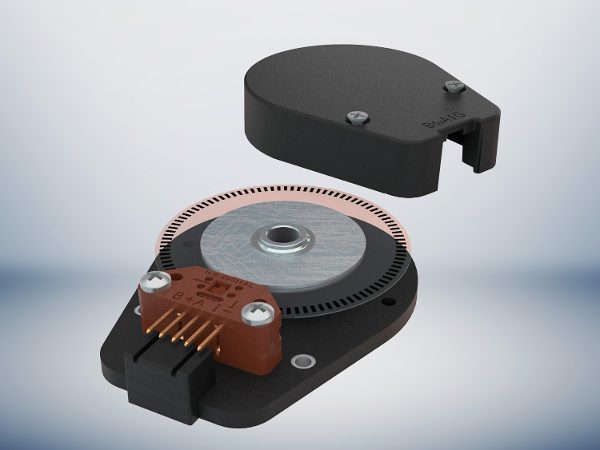

Compact miniature optical encoder kit

The E5 Series encoders have a rugged glass-filled polymer housing. The optical incremental encoder is designed to be easily mounted and dismounted from an existing motor shaft to provide digital feedback information.

Secure connection to the E5 Series encoder is via a 5-pin (single-ended versions) or 10-pin (differential versions) locking connector.

Features

  • Quick and easy mounting and dismounting
  • Robust, screwable housing
  • Positive latching connector
  • Accepts .010" axial shaft play
  • 32 to 5000 cycles per revolution (CPR)
  • 128 to 20000 pulses per revolution (PPR)
  • 2 channel quadrature TTL square wave outputs
  • Optional index (3rd channel)

Please note: The encoders are not available as single components but only in combination with a drive.
