Magnetic Encoders | EHM Series

Contactless and wear-free

Magnetic encoders detect changes in magnetic density and convert them into output signals. They are particularly suitable for applications where a robust design is important.

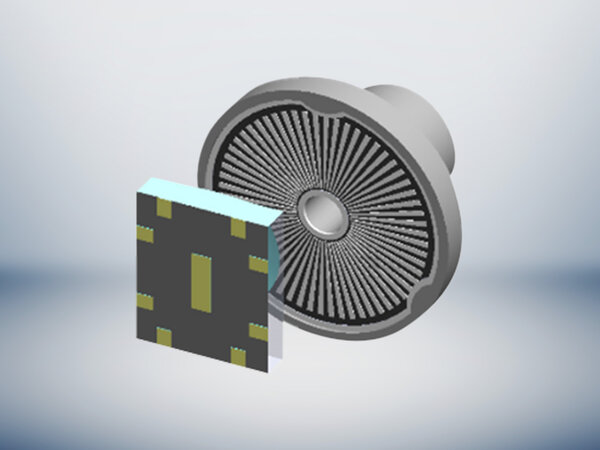

The magnetic incremental encoder works contactless and wear-free. It is equipped with Hall sensors and a permanent magnet pole wheel with alternating polarities. Usually, a small, multi-pole permanent magnet sits on the motor shaft. The changes in the magnetic flux are detected by sensors and fed to the electronics.


Features

  • Contactless and wear-free
  • Voltage range from 5 to 24 VDC
  • Can be integrated directly into motors
  • Standard solution for many applications

Other encoder types available on request.

Please note: The encoders are not available as individual components but only in combination with a drive.
