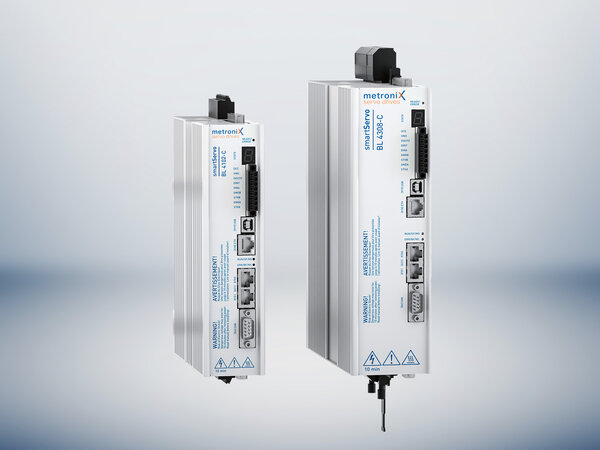

Servo Controller smartServo

The smartServo servo drives are intelligent AC servo drives for controlling three-phase synchronous, torque and linear motors. The servo drives impress with several on-board applications such as EtherCAT, PROFINET and CANopen and can be used universally. Thanks to extensive parameterisation options, they can be adapted to a wide range of different applications. Commissioning is uncomplicated by means of user-friendly software.

The compact BL 4000-C is a powerhouse and moves large loads such as large machines or robots precisely, dynamically and in a controlled manner.

Features

• Supply voltage 1 x 75...230 VAC or 3 x 230...480 VAC
• Rated output power 0.4 kW...4.8 kW
• Highest control quality and dynamics Controller sampling time < 32µs
• USB and Ethernet as parameterisation interface
• Bluetooth integrated Query of controller status via smartphone or tablet
• Available for installation in a control cabinet or decentralised

Interfaces

• USB 2.0
• Ethernet
• CAN bus
• EtherCAT
• PROFINET
• MicroSD card

Supported feedback systems

• EnDat 2.2
• HIPERFACE®, HIPERFACE DSL®
• Resolver
• Analogue and digital incremental encoders with / without commutation signals
• BISS (type C)

Safety

• Safe Torque off (STO) according to EN 61800-5-2
• Safe Stop 1 (SS1) according to EN 61800-5-2
